4.2 Porous Surfaces

Download summaries of this SMP and its maintenance guidance, with quick reference information for clients and developers:

• Porous Surfaces SMP One-Sheet
• Porous Surface Maintenance Guidance One-Sheet

4.2.1 Porous surface introduction

Porous surfaces can provide surface-level structural support while allowing stormwater to drain directly through the surface into an underlying stone bed and the soil below, thereby reducing surface stormwater runoff. Permitted porous surfaces include, but are not limited to, permeable pavers, reinforced turf, artificial, or synthetic, turf, and porous safety surfaces. (Porous asphalt, porous concrete, and resin-bound aggregate are strictly prohibited.) Interlocking pavers have openings filled with stone to create a porous surface. For all these types, stormwater flows through the porous surface during a rain event, then drains into the subbase, where it is stored until it infiltrates into the soil.

Porous surfaces can be combined with other SMPs in series to meet the Stormwater Regulations. The designer is referred to Section 3.2.3 for information on using SMPs in series.

Design of porous surfaces is not limited to the examples shown within this text. Successful stormwater management plans will combine appropriate materials and designs specific to each site.

Porous surface design may be considered differently for Stormwater Retrofits. Designers looking to incorporate porous surface in Stormwater Retrofit projects should contact Stormwater Billing and Incentives for additional information.

When can porous surfaces be used?

Porous surface is only suitable for select types of development. Porous surfaces can be particularly well-suited for walkways, sidewalks, athletic surfaces, and playgrounds. Its footprint can be adapted to fit into spaces of almost any size and can be integrated into many different site layouts.

Porous surface can be designed to meet the traffic loading requirements for most parking lots and travel surfaces, but the maintenance costs are significantly increased in areas that receive high traffic volume. For example, commercial parking lots will require more frequent vacuuming to prevent the surface from clogging.

Porous surface types

Porous surface systems can be distinguished by their intended stormwater management objective.

Porous surface DIC systems are designed to receive and infiltrate direct (1:1) rainfall only and are considered as DIC. Infiltration testing is not required for porous surface DIC; however, it is recommended to ensure timely drainage of the stone base. In some cases, where a small amount of run-on cannot be avoided, it may still be possible to consider the porous surface disconnected. Such allowances will be considered on a case-by-case basis by PWD.

Porous surface over a structural SMP is considered an SMP in series, where the porous surface is designed to manage its direct (1:1) rainfall, and the structural SMP beneath it is designed to store and manage DCIA runoff from other areas on-site in addition to direct (1:1) rainfall onto the porous surface atop the SMP. The porous surface cannot receive the additional runoff; The additional runoff must be conveyed directly to the underlying SMP. Porous surface that receives direct overland flow is extremely prone to clogging. Porous surface over a structural SMP is essentially a subsurface infiltration or detention system (based on infiltration feasibility) with a porous surface at-grade. The porous surface over the structural SMP footprint is considered DCIA. The structural SMP requires infiltration testing. The designer is referred to Section 3.3 for information on infiltration testing.

Porous surface systems can also be distinguished by the type of porous paving surface. There are many different types of structural surfaces that allow water to flow through void spaces in the surface. Any of these alternatives serve as a form of conveyance and filtration for the storage bed below. Several of the most commonly used porous structural surfaces are described below, but this does not represent an exhaustive list of the porous surfaces appropriate for stormwater management applications.

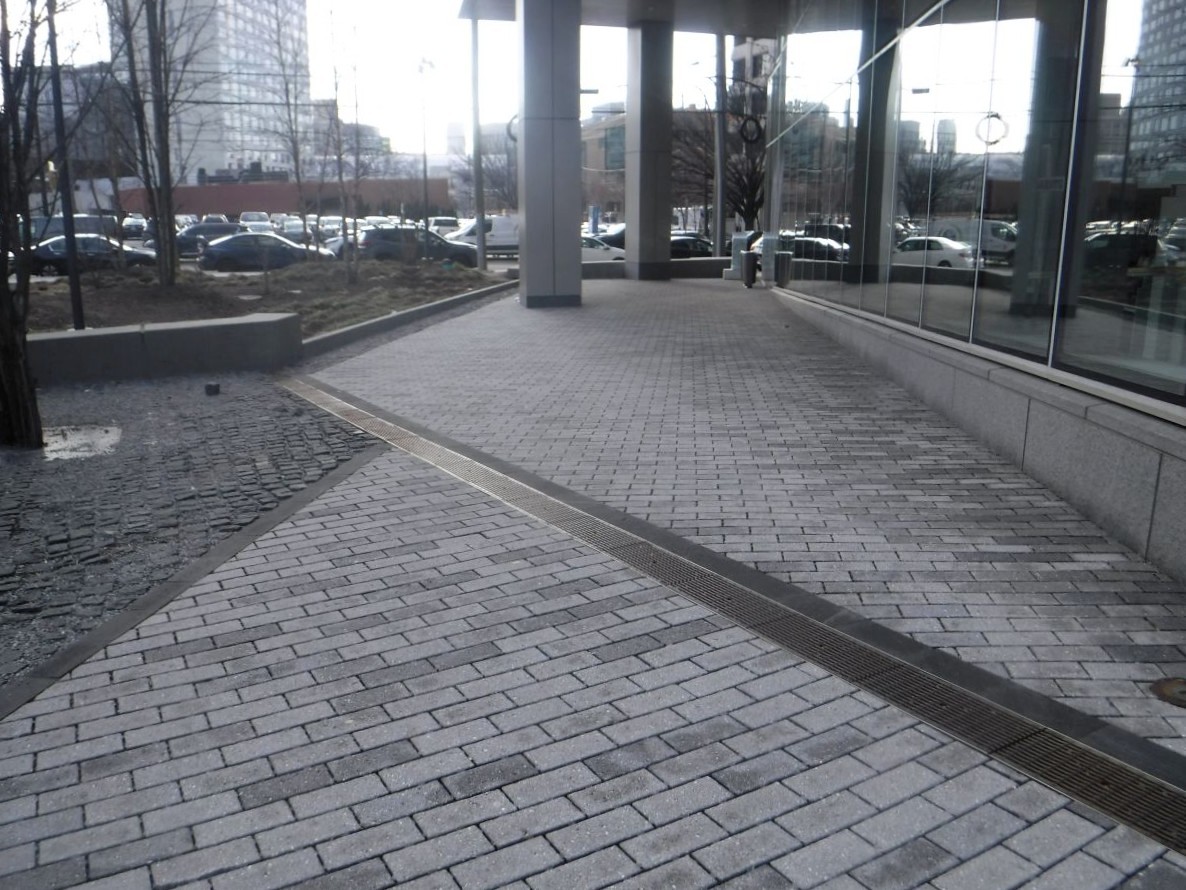

Permeable pavers are typically interlocking units (often concrete) with openings that can be filled with a pervious material such as gravel. These units are often implemented for aesthetic reasons and are especially well suited to plazas, patios, residential driveways, and small parking areas. There are also plastic grids that can be filled with gravel to create a fully gravel surface that is not as susceptible to rutting and compaction as are traditional gravel lots. Gravel used in interlocking concrete pavers or plastic grid systems must be well-graded to ensure permeability.

Reinforced turf consists of interlocking structural units with openings that can be filled with soil for the growth of turf grass and are suitable for traffic loads and parking. They are often used in overflow or event parking. Reinforced turf grids can be made of concrete or plastic and are underlain by a stone and/or a sand drainage system for stormwater management. While both plastic and concrete units perform well for stormwater management and traffic needs, plastic units may provide better turf establishment and longevity, largely because the plastic will not absorb water and diminish soil moisture conditions.

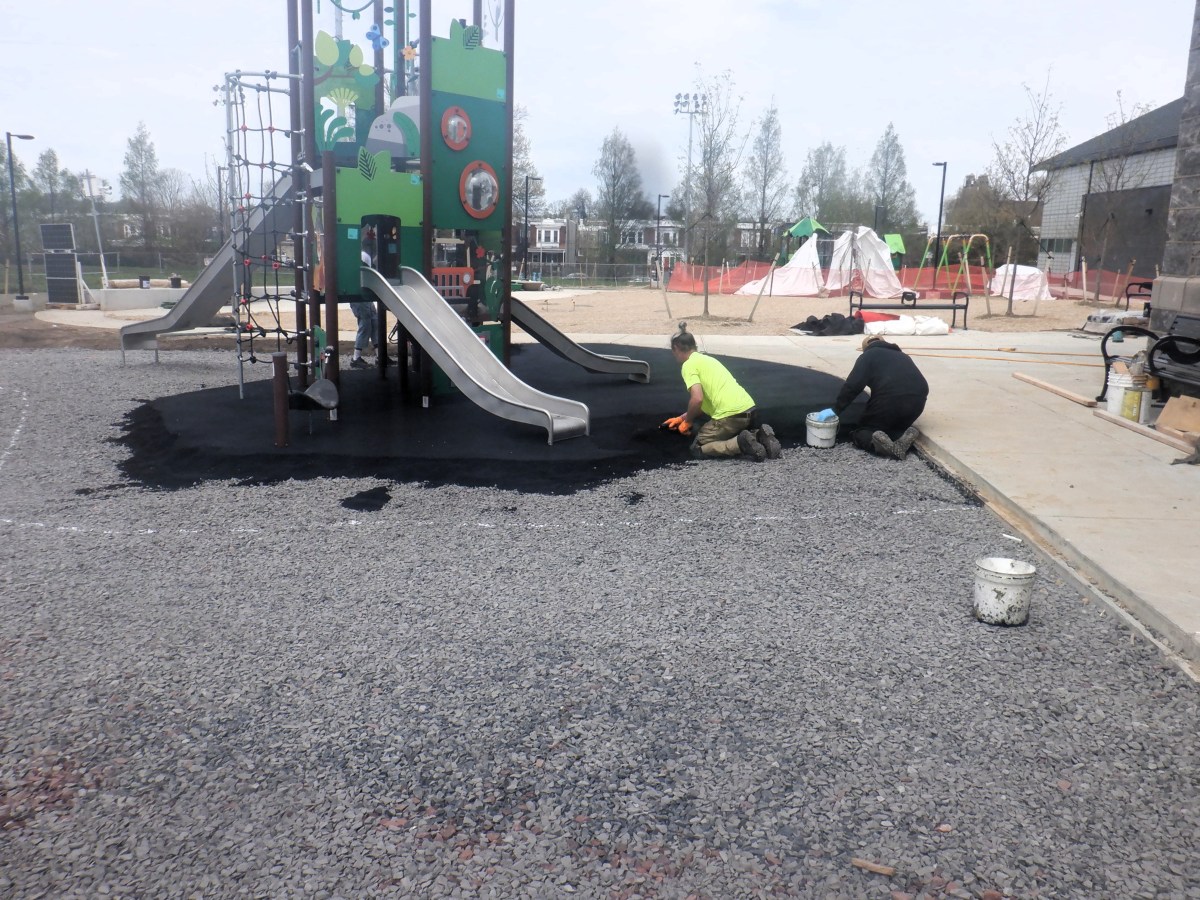

Artificial, or synthetic, turf is a water permeable surface of synthetic fibers that emulates the aesthetic of natural grass. First gaining popularity in the 1960s, artificial turf has undergone a number of changes to its standard composition, with the most widely-used systems today featuring infills that are mixtures of sand and recycled (“crumb”) rubber. The designer is referred to Section 3.5.5 for more information on athletic turf fields.

Porous asphalt, porous concrete, and resin-bound aggregate are strictly prohibited. Property owners with existing systems comprised of any of these surface types are referred to Section 4.2.6 for Maintenance Guidance.

4.2.2 Porous surface components

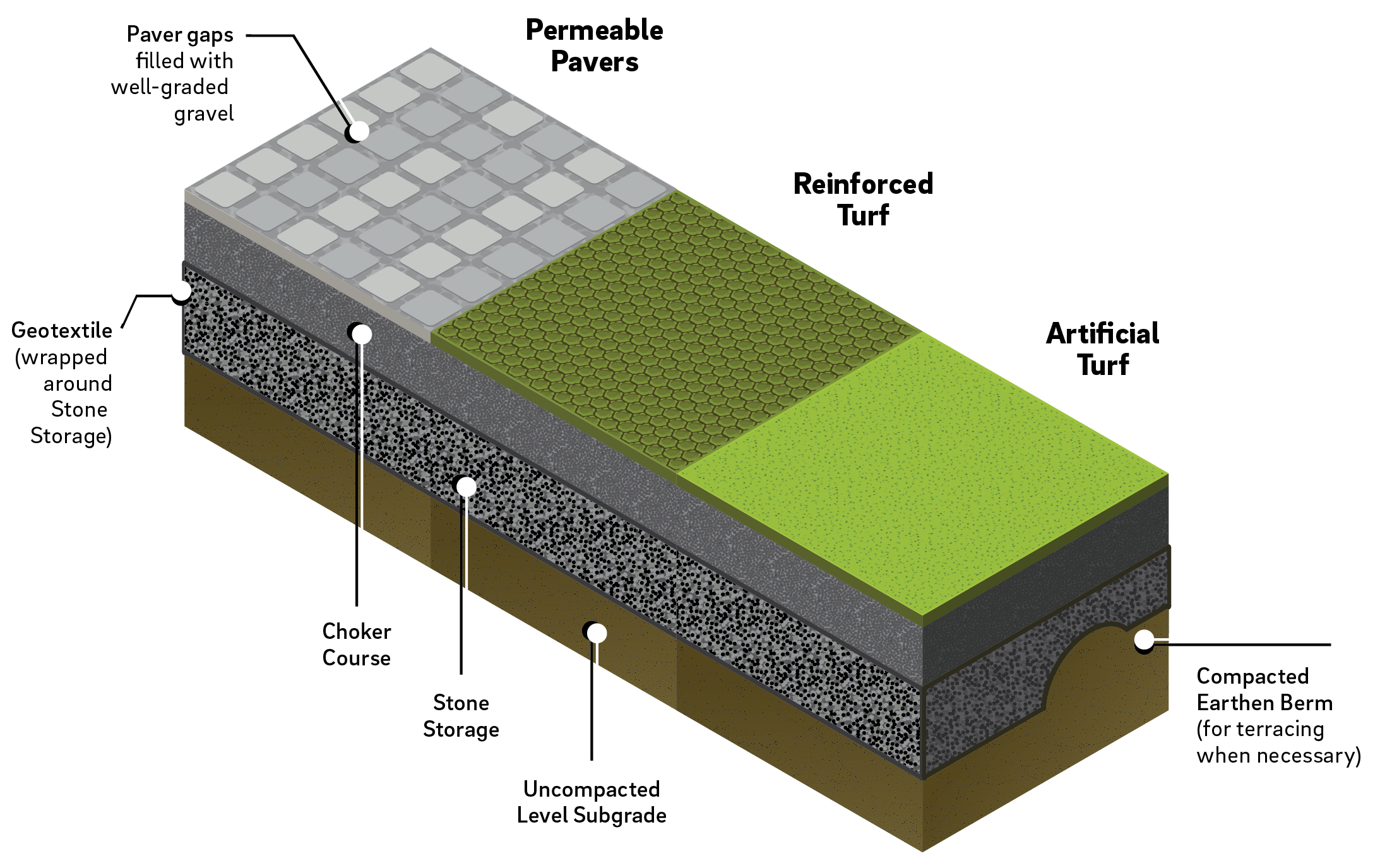

Figure 4.2‑1: Porous surfaces with typical features

Pretreatment component

Porous surface does not typically have pretreatment systems due to its (1:1) loading ratio. Run-on from pervious or impervious areas is not permitted, so pretreatment is not necessary. However, any SMP installed beneath a porous surface does require pretreatment of the runoff conveyed directly to it via piping.

Pretreatment systems capture trash, sediment, and/or pollutants from stormwater runoff before delivery to the storage or infiltration area. Pretreatment needs will vary significantly depending on the contributing drainage area composition and use. Pretreatment can include structures such as sumped and trapped inlets, sediment/grit chambers or separators, media filters, inlet inserts, or other appropriate prefabricated or proprietary designs to remove sediment, floatables, and/or hydrocarbons from stormwater runoff prior to being conveyed to a porous surface structural SMP. While inlet hoods are preferred, permanent filter bags may be accepted for Stormwater Retrofit projects where existing inlets do not have hoods and inlet reconstruction is not feasible. In addition to sumped and trapped inlets, permanent filter bag inserts are required for sites that generate pollutants such as loading docks, material storage facilities, junk yards, and waste collection and disposal sites. Permanent filter bags will require frequent cleanings.

Pretreatment can also consist of filter strips, forebays, and swales. The designer is referred to Section 4.10 for more information on pretreatment systems.

Storage area component

Storage areas within porous surface DIC systems temporarily hold stormwater runoff as it infiltrates into native soils.

The subsurface storage component of a porous surface structural SMP is typically constructed of a stone-filled, level-bottomed bed or trench, which may or may not incorporate pipes, arches, concrete vaults, crates, plastic grids, or other proprietary structures. The void spaces between the stones and/or structures store stormwater until it can infiltrate into the surrounding soils or be released downstream at a controlled rate.

Outlet control component

Outlet controls within a porous surface structural SMP can provide a range of functions, including the following:

• Controlling how much water is stored for infiltration, if infiltration is feasible;
• Meeting drain down time requirements;
• Controlling the rate of discharge from the system and limiting water surface elevations during various storm events; and/or
• Bypassing of flows from large storm events.

Positive overflow must be provided for porous surfaces. Positive overflow conveys runoff from larger storms out of the system and prevents flooding. In most cases, specifically for porous surface DIC, appropriate grading of the porous surface is sufficient for providing positive flow away from porous surface should it become clogged or ineffective. For larger porous surface systems or porous surface over a structural SMP, inlets are the most common overflow. A perforated pipe system can convey water from the storage bed, but static storage for the Water Quality Volume (WQv) is required below the perforated pipes.

Outlet controls may include orifices, weirs, or underdrains. The designer is referred to Section 4.12 for more information on outlet controls.

Inspection and maintenance access component

Safe and easy inspection and maintenance access to all major components within porous surface is critical to ensuring long-term performance. Inspection and maintenance access structures provide a portal to any structural SMP beneath the porous surface. Access points provide access to subsurface systems, both for inspections and routine maintenance, and for pumping water out of subsurface systems in cases of failure or severe damage. Manholes provide access for maintenance personnel and equipment to perform maintenance and inspections. Cleanouts provide access for hoses and vacuum equipment, as well as for any installed underdrains. Observation wells provide access to the bottom of subsurface systems for performance inspections and monitoring. Access structures may also serve additional functions, such as joining subsurface pipes.

4.2.3 Porous surface design standards

General design standards

1. For porous surface DIC systems:
   1. A reduction in DCIA is permitted when a porous surface system is installed on-site such that it does not create any areas of concentrated infiltration or discharge.
   2. The surface slope in any direction across porous surface cannot exceed 5% to be eligible for disconnection credit.
   3. The choker course depth must be a minimum of two inches.
   4. If an underdrain is proposed, the porous surface will only be considered DIC if the first 1.5 inches of runoff can be stored below the lowest invert of the underdrain.
   5. Appropriate Curve Number (CN) values must be used when performing Flood Control calculations.
2. For porous surfaces over structural SMPs, if infiltration is feasible, the designer is referred to Section 4.4 for subsurface infiltration general design requirements.
3. For porous surfaces over structural SMPs, if infiltration is infeasible, the designer is referred to Section 4.8 for subsurface detention general design requirements.

Pretreatment design standards

4. Acceptable form(s) of pretreatment must be incorporated into design. Pretreatment of runoff from all inlets is required. At a minimum, this can be achieved through the use of sumps and traps for inlets, and sump boxes with traps downstream of trench drains. The designer is referred to Section 4.10 for more information on design standards for pretreatment systems.

Inlet control design standards

5. The designer is referred to Section 4.11 for information on design standards for inlet control systems.

Storage area design standards

6. For porous surface DIC systems:

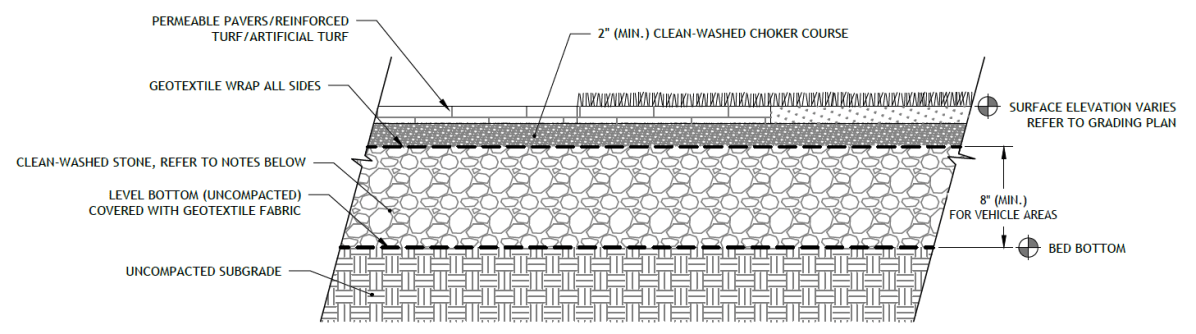

   1. Stone storage bed depth must be a minimum of eight inches, except when located beneath walkways or play surfaces, for which a depth of four inches is allowable.
   2. Stone must be separated from soil media by a separation barrier, such as a geotextile or a pea gravel filter, to prevent sand, silt, and sediment from entering the system.

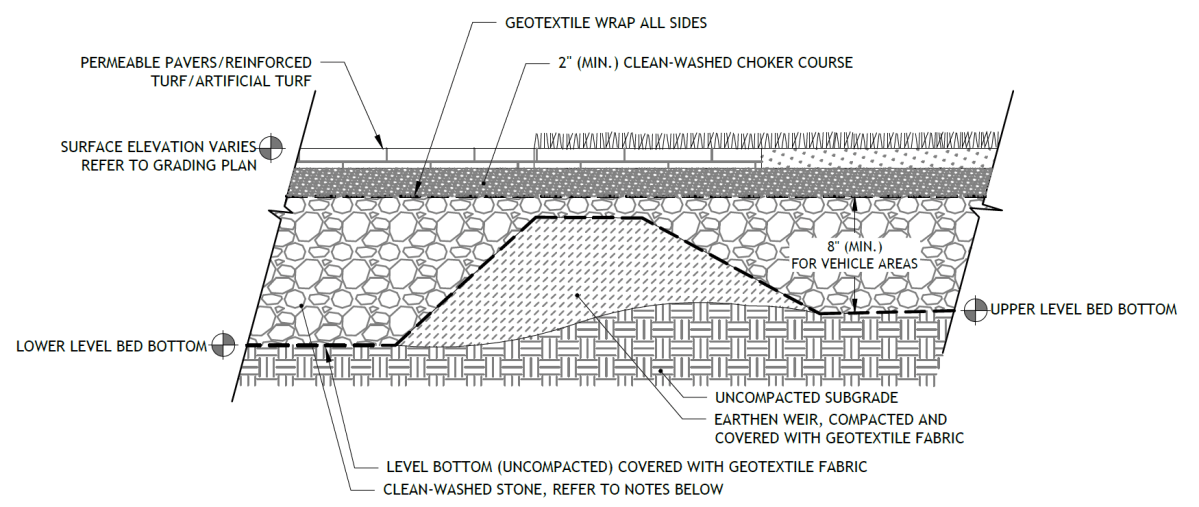

   3. Stone storage systems must have a level bottom. Terraced systems may be used to maintain a level infiltration interface with native soil while accommodating significant grade changes.
7. For porous surfaces over structural SMPs, if infiltration is feasible, the designer is referred to Section 4.4 for subsurface infiltration storage area requirements.
8. For porous surfaces over structural SMPs, if infiltration is infeasible, the designer is referred to Section 4.8 for subsurface detention storage area requirements.
9. When SMPs are used in series, the storage areas for all SMPs must provide cumulative static storage for the WQv, but there is no minimum storage requirement for each individual SMP used in series.

Outlet control design standards

10. Impervious liners beneath porous surfaces should be avoided, but they may be necessary in areas over tunnels or subsurface structures. The lined area should be a minimal portion of the total porous area. If a significant area needs to be lined, a porous surface may not be an appropriate management strategy.
11. Underdrains, if proposed for porous surface DIC systems, must meet the following requirements:
    1. Underdrains must be surrounded by a sand or stone layer to filter sediment and facilitate drainage.
    2. The minimum allowable thickness of a sand or stone filter layer is six inches both above and beneath the underdrain.
    3. To prevent clogging, underdrain pipes must be surrounded by a geotextile fabric if a sand layer is used.
12. Inlets or area drains must be provided for all porous surface areas in excess of 5,000 square feet, in order to provide positive overflow.
13. The designer is referred to Section 4.12 for information on design standards for outlet control systems.

Inspection and maintenance design standards for porous surfaces over a structural SMP

14. Cleanouts, manholes, access panels and other access features must be provided to allow unobstructed and safe access to SMPs for routine maintenance and inspection of inflow, outflow, underdrains, and storage systems.
15. Observation wells must be provided for SMPs that include stone storage and must meet the following requirements:
    1. The observation well must be placed at the invert of the stone bed.
    2. The observation well must be located near the center of the stone bed system to monitor the level and duration of water stored within the SMP (drain down time). A minimum of six inches of clearance must be provided between the edge of the observation well’s concrete ring or frame and any nearby site features (curbing, tree pits, sidewalk edge, etc.). Plan view dimensioning for the proposed location of the observation well, relative to the boundaries of the SMP it lies within, must be provided on the plans.
    3. Adequate inspection and maintenance access to the observation well must be provided.
    4. An observation well located in a paved area must be outfitted with a cover and frame. The cover plate must be installed flush with the surrounding surface at finished grade, and grading should drain away from the observation well wherever possible. The solid section of the observation well must extend into the cover frame enough such that a bentonite/cement seal can be placed around the well within the frame, and a solid slip-on cap can be fitted onto the pipe end.
    5. An observation well located in an unpaved area must have a concrete ring or frame poured for support, with three lengths of rebar evenly spaced around the ring and three inches from its outer edge. The observation well should be located outside of the ponding area of any surface SMPs. If, due to space limitations, an observation well must be placed in the ponding area of a surface SMP, the concrete ring and well cover must extend three inches above the SMP’s maximum ponding depth.
    6. The observation well must include a slotted section within the storage layer of the SMP. The top of the slotted well section must extend to a minimum of six inches below the top of the SMP storage layer, and the slotted section must extend down the entire depth of the SMP.
16. Access features for underground storage systems
    1. Access features must be provided for all underground storage systems that are not stone storage beds.
    2. A sufficient number of access points in the system must be provided to efficiently inspect and maintain the storage area.
    3. For cast-in-place vault systems, access features must consist of manholes or grated access panels or doors. Grated access panels are preferred to maintain airflow.
    4. For grid storage or other manufactured systems, follow the manufacturer’s recommendations.
    5. Ladder access is required for vaults greater than four feet in height.
    6. Header pipes, at minimum 36‑inch diameter, connected to manholes at each corner of the subsurface system must be provided. Alternatively, smaller header pipes may be used if cleanouts are provided on the manifold/header pipe junction for each distribution pipe. The cleanouts must be on alternating sides of the SMP.

4.2.4 Porous surface material standards

Pretreatment material standards

1. The designer is referred to Section 4.10 for information on materials standards for pretreatment systems.

Inlet control material standards

2. Permeable Pavers and Reinforced Turf Grid Systems
   1. Permeable paver and grid systems must conform to manufacturer specifications.
   2. The systems must have a minimum flow through rate of five inches per hour and a void percentage of no less than 10%.
   3. Gravel used in interlocking concrete pavers or plastic grid systems must be well-graded and washed to ensure permeability.
3. The designer is referred to Section 4.11 for information on material standards for inlet control systems.

Storage area material standards

4. Stone
   1. Stone designed for stormwater storage must be uniformly graded, crushed, clean-washed stone. PWD defines “clean-washed” as having less than 0.5% wash loss, by mass, when tested per AASHTO T-11 wash loss test. AASHTO No. 3 and No. 57 stone can meet this specification.
   2. All aggregates used within a porous surface system must meet the following requirements:
      1. Maximum wash loss: 0.5% per AASHTO T-11
      2. Minimum durability index: 35 per ASTM D3744
      3. Maximum abrasion: 10% for 100 revolutions and 50% for 500 revolutions per ASTM C131
   3. All choker course aggregate must meet the specifications of AASHTO No. 57 and must meet the following gradation:

Table 4.2‑1: Required choker course gradation

U.S. standard sieve size	Percent passing by weight
1 ½” (37.5 mm)	100%
1” (25 mm)	95-100%
½” (19 mm)	25-60%
#4 (4.75 mm)	0-10%
#8 (2.36 mm)	0-5%

5. Sand, if used, must be AASHTO M-6 or ASTM C-33 sand and must have a grain size of 0.02 to 0.04 inches.
6. Storage Chambers (For Porous Surface Structural SMPs)
   1. Pipe used within a subsurface infiltration SMP must be continuously perforated and have a smooth interior with a minimum inside diameter of four inches.
   2. High-density polyethylene (HDPE) pipe must meet the specifications of AASHTO M252, Type S or AASHTO M294, Type S.
   3. Any pipe materials outside the SMP are to meet City Plumbing Code Standards.
7. Geotextile must consist of polypropylene fibers and meet the following specifications (AASHTO Class 1 or Class 2 geotextile is recommended):
   1. Grab Tensile Strength (ASTM-D4632): ≥ 205 lbs
   2. CBR Puncture Strength (ASTM-D6241): ≥ 500 lbs
   3. Flow Rate (ASTM-D4491): ≥ 95 gal/min/ft²
   4. UV Resistance after 500 hours (ASTM-D4355): ≥ 70%
   5. Tear Resistance (ASTM-D4533): ≥ 80 lbs
   6. Heat-set or heat-calendared fabrics are not permitted.

Outlet control material standards

8. Underdrains, if proposed, must be made of continuously perforated HDPE plastic piping with a smooth interior and a minimum inner diameter of four inches. HDPE pipe must meet the specifications of AASHTO M252, Type S or AASHTO M294, Type S.
9. The designer is referred to Section 4.12 for information on material standards for outlet control systems.

Inspection and maintenance access material standards

10. Observation wells
    1. The observation well must consist of slotted plastic pipe with minimum inner diameter of four inches and a solid cap at the surface. The slotted section of the well must consist of PVC slotted well screen with 0.01‑inch slot size and an attached perforated PVC cap at the bottom.
    2. The observation well’s cover must be ductile iron in a gray iron frame.
    3. For an observation well located in an unpaved area, the well’s concrete ring must be a minimum of six inches wider in any dimension than the cover frame, of equal depth as the cover frame itself, and poured atop a minimum of six inches of AASHTO #57 stone bedding. A frame conforming to these minimum dimensions may be circular or square.
11. Cleanouts must be made of material with a smooth interior having a minimum inner diameter of six inches. If the connecting pipe is eight inches in diameter or larger, then the cleanout must be eight inches in diameter.

4.2.5 Porous surface construction guidance

The construction guidelines herein apply to all porous surface systems. Proper construction and careful consideration of soil compaction, infiltration performance, and sedimentation control of subsurface infiltration systems are essential to ensure long-term functionality and reduce long-term maintenance needs. Since subsurface infiltration systems are, by definition, buried, construction oversight is critical. At a minimum, verification of volumes, grades, and elevations must be confirmed prior to backfill.

1. Areas for porous surface systems must be clearly marked before any site work begins to avoid soil disturbance and compaction during construction.
2. Excavate subsurface area to proposed depth. Excavation should take place after contributing upstream disturbed areas have been permanently stabilized. If this is impractical, install PWD-approved erosion and sedimentation control Best Management Practices (BMPs) to prevent runoff and sediment from entering the excavated bed. Where erosion of subgrade has caused accumulation of fine materials and/or surface ponding, this material must be removed with light equipment and the underlying soils scarified to a minimum depth of six inches with a York rake or equivalent and light tractor.
3. Existing subgrade must not be compacted, and construction equipment traffic must be minimized prior to placement of the geotextile and stone bed. The use of machinery to load stone from outside of the basin footprint is recommended. If it is essential that equipment be used in the excavated area, all equipment must be approved by the engineer. Equipment with narrow tracks or tires, rubber tires with large lugs, or high-pressure tires will cause excessive compaction and must not be used. Should the subgrade be compacted during construction, additional testing of soil infiltration rates and system redesign may be required. Rock construction entrances must not be located on top of areas proposed for infiltration practices.
4. Bring subgrade of stone infiltration bed to line, grade, and elevations indicated in the drawings, while avoiding compaction. The bottom of the infiltration bed must be at a level grade.
5. Place geotextile and recharge bed aggregate immediately after approval of subgrade preparation to prevent accumulation of debris or sediment. Aggregate installation should take place after contributing upstream disturbed areas have been permanently stabilized. Install PWD-approved erosion and sedimentation control BMPs to prevent runoff and sediment from entering the storage bed during the placement of the geotextile and aggregate bed.
6. Place geotextile in accordance with manufacturer’s standards and recommendations. Adjacent strips of filter fabric must overlap a minimum of 16 inches. Fabric must be secured at least four feet outside of bed. This edge strip should remain in place until all bare soils contiguous to beds are stabilized and vegetated. As the site is fully stabilized, excess geotextile can be cut back to the edge of the bed.
7. Install aggregate course in lifts of six to eight inches. Compact each layer with equipment, keeping equipment movement over storage bed subgrades to a minimum. Install aggregate to grades indicated on the drawings.

4.2.6 Porous surface maintenance guidance

Maintenance of porous surfaces focuses on the periodic removal of sediment and debris from the system. While porous asphalt, porous concrete, and resin-bound aggregate are no longer permitted, maintenance guidance for existing systems can be found below. General recommended maintenance activities for porous surfaces are summarized in Table 4.2‑2.

Table 4.2‑2: Porous surface maintenance guidelines

Early maintenance activity	Frequency
Inspect erosion control and flow spreading devices until soil settlement and vegetative establishment of contributing areas has occurred.	Biweekly

Ongoing maintenance activity	Frequency
Inspect erosion control and flow spreading devices until soil settlement and vegetative establishment of contributing areas has occurred.	Biweekly
Mow grass in permeable paver or reinforced turf grid systems that have been planted with grass.	As needed
Replace filter bags for pretreatment devices. Please ensure filter bags are installed properly.	Quarterly
Vacuum porous asphalt or concrete surfaces on grandfathered projects with regenerative air sweeper or commercial vacuum sweeper (traditional street sweepers are not appropriate).	Semiannually
Vacuum inlet structures within or draining to the structural SMP beneath the porous surface.	Semiannually
Inspect underdrain cleanouts, if any.	Semiannually
Maintain records of all inspections and maintenance activity.	Ongoing

Sediment control

Superficial soil does not necessarily clog the voids in porous surfaces. However, soil that is ground in repeatedly by tires can lead to clogging. Therefore, trucks or other heavy vehicles should be prevented from tracking or spilling soil onto the porous surface. Furthermore, all construction or hazardous materials carriers should be prohibited from entering a porous surface lot. Areas with heavy vehicular traffic will require more frequent vacuuming.

Winter maintenance

Winter maintenance for a porous surface may be necessary but is usually less intensive than that required for a standard pavement lot. By its very nature, a porous surface system with subsurface aggregate bed may have better snow and ice melting characteristics than standard pavement. Once snow and ice melt, they flow through the porous surface rather than refreezing. Therefore, ice and light snow accumulation are generally not as problematic. However, snow will accumulate during heavier storms. Abrasives such as sand or cinders must not be applied on or adjacent to the porous surface. Snow plowing is acceptable, provided it is done carefully (i.e., by setting the blade about 0.5 inches higher than usual and using a rubberized blade or blade tip). Salt is acceptable for use as a deicer on the porous surface, though non-toxic, organic deicers, applied either as blended, magnesium chloride-based liquid products or as pretreated salt, are preferable. Any deicing materials should be used in moderation.

Repairs

Potholes are not common; though settling might occur if a soft spot in the subgrade is not removed during construction. Damaged areas that are smaller than 50 square feet and comprising less than 10% of the total porous area can be patched, depending on the location within the porous area. In many cases the loss of porous surface will be insignificant. If an area greater than 50 square feet or 10% of the total is in need of repair, approval of patch type must be sought from either the engineer or owner. Porous surfaces must never be seal coated under any circumstances. Any required repair of drainage structures should be done promptly to ensure continued proper functioning of the system.

Outlet controls

The designer is referred to Section 4.12 for information on maintenance guidance for outlet controls.
